Korry Spare Switches for the Boeing 777
In coordination with Boeing, in 2011 Korry Electronics released a new version of the Korry switch originally installed on 777 aircraft. The new configuration has a one-piece cap/switch module (refer to CMM 31-12-02 for mounting differences).
The part-numbering system was also updated. The new cap/switch module is fully interchangeable with the original assemblies and compatible with original mounting hardware.

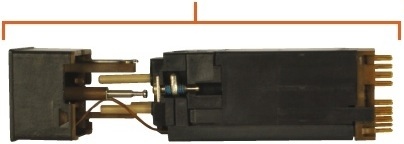

NewIn the new configuration, the cap/switch module is a one-piece assembly, with part number formatted 32500-7XX.

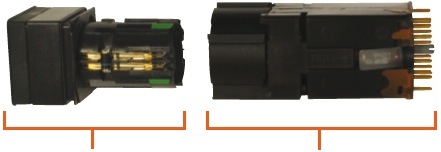

OldIn the old configuration, the cap and switch modules are separate, with distinct part numbers: 09-531-0XXX for the cap modules and 09-532-0XXX for the switch modules.

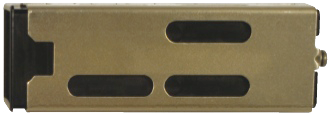

Mounting hardwareThe new cap/switch module is interchangeable with the old cap and switch modules. New mounting hardware is not required.
Part Number Correspondences:
| Old Korry 777 switches (CMM 31-12-01) |
New Korry 777 switches (CMM 31-12-02) |
|||||
|---|---|---|---|---|---|---|
| Boeing top level | Korry top level | Korry cap module | Korry switch module | Boeing top level | Korry top level | Korry cap/switch module |
| S231W240-101 | 09-530-0101 | 09-531-0001 | 09-532-0103 | S231W240-201 | 32500-201 | 32500-701 |
| S231W240-102 | 09-530-0102 | 09-531-0002 | 09-532-0103 | S231W240-202 | 32500-202 | 32500-702 |
| S231W240-103 | 09-530-0103 | 09-531-0003 | 09-532-0103 | S231W240-203 | 32500-203 | 32500-703 |
| S231W240-104 | 09-530-0104 | 09-531-0004 | 09-532-0103 | S231W240-204 | 32500-204 | 32500-704 |
| S231W240-105 | 09-530-0105 | 09-531-0005 | 09-532-0104 | S231W240-205 | 32500-205 | 32500-705 |
| S231W240-106 | 09-530-0106 | 09-531-0006 | 09-532-0103 | S231W240-206 | 32500-206 | 32500-706 |
| S231W240-107 | 09-530-0107 | 09-531-0007 | 09-532-0104 | S231W240-207 | 32500-207 | 32500-707 |
| S231W240-108 | 09-530-0108 | 09-531-0008 | 09-532-0103 | S231W240-208 | 32500-208 | 32500-708 |
| S231W240-109 | 09-530-0109 | 09-531-0009 | 09-532-0103 | S231W240-209 | 32500-209 | 32500-709 |
| S231W240-110 | 09-530-0110 | 09-531-0010 | 09-532-0105 | S231W240-210 | 32500-210 | 32500-710 |
| S231W240-111 | 09-530-0111 | 09-531-0011 | 09-532-0105 | S231W240-211 | 32500-211 | 32500-711 |
| S231W240-112 | 09-530-0112 | 09-531-0012 | 09-532-0103 | S231W240-212 | 32500-212 | 32500-712 |
| S231W240-113 | 09-530-0113 | 09-531-0013 | 09-532-0103 | S231W240-213 | 32500-213 | 32500-713 |
| S231W240-114 | 09-530-0114 | 09-531-0014 | 09-532-0104 | S231W240-214 | 32500-214 | 32500-714 |
| S231W240-115 | 09-530-0115 | 09-531-0015 | 09-532-0104 | S231W240-215 | 32500-215 | 32500-715 |
| S231W240-116 | 09-530-0116 | 09-531-0016 | 09-532-0104 | S231W240-216 | 32500-216 | 32500-716 |
| S231W240-117 | 09-530-0117 | 09-531-0017 | 09-532-0104 | S231W240-217 | 32500-217 | 32500-717 |
| S231W240-118 | 09-530-0118 | 09-531-0018 | 09-532-0103 | S231W240-218 | 32500-218 | 32500-718 |
| S231W240-119 | 09-530-0119 | 09-531-0019 | 09-532-0103 | S231W240-219 | 32500-219 | 32500-719 |
| S231W240-121 | 09-530-0121 | 09-531-0021 | 09-532-0105 | S231W240-221 | 32500-221 | 32500-721 |
| S231W240-123 | 09-530-0123 | 09-531-0023 | 09-532-0103 | S231W240-223 | 32500-223 | 32500-723 |
| S231W240-124 | 09-530-0124 | 09-531-0024 | 09-532-0104 | S231W240-224 | 32500-224 | 32500-724 |
| S231W240-125 | 09-530-0125 | 09-531-0025 | 09-532-0104 | S231W240-225 | 32500-225 | 32500-725 |
| S231W240-126 | 09-530-0126 | 09-531-0026 | 09-532-0103 | S231W240-226 | 32500-226 | 32500-726 |
| S231W240-127 | 09-530-0127 | 09-531-0027 | 09-532-0104 | S231W240-227 | 32500-227 | 32500-727 |
| S231W240-128 | 09-530-0128 | 09-531-0028 | 09-532-0103 | S231W240-228 | 32500-228 | 32500-728 |
| S231W240-130 | 09-530-0130 | 09-531-0030 | 09-532-0105 | S231W240-230 | 32500-230 | 32500-730 |
| S231W240-131 | 09-530-0131 | 09-531-0031 | 09-532-0103 | S231W240-231 | 32500-231 | 32500-731 |
| S231W240-132 | 09-530-0132 | 09-531-0032 | 09-532-0103 | S231W240-232 | 32500-232 | 32500-732 |
| S231W240-133 | 09-530-0133 | 09-531-0033 | 09-532-0103 | S231W240-233 | 32500-233 | 32500-733 |
| S231W240-134 | 09-530-0134 | 09-531-0034 | 09-532-0103 | S231W240-234 | 32500-234 | 32500-734 |
| S231W240-135 | 09-530-0135 | 09-531-0035 | 09-532-0103 | S231W240-235 | 32500-235 | 32500-735 |
| S231W240-136 | 09-530-0136 | 09-531-0036 | 09-532-0103 | S231W240-236 | 32500-236 | 32500-736 |
| S231W240-137 | 09-530-0137 | 09-531-0037 | 09-532-0103 | S231W240-237 | 32500-237 | 32500-737 |
| S231W240-138 | 09-530-0138 | 09-531-0038 | 09-532-0104 | S231W240-238 | 32500-238 | 32500-738 |
| S231W240-139 | 09-530-0139 | 09-531-0039 | 09-532-0103 | S231W240-239 | 32500-239 | 32500-739 |
Disclaimer:
- This summary only contains basic marketing information on function or purpose. It does not contain technical data as defined in 15 CFR 772 or 22 CFR 120.10. This information is not subject to US export controls under the EAR or the ITAR.
